The EnOcean® Multifunction Relay Switch

Control everything you want, from a single actuator: lights, heaters, boiler, garage door, etc… and finally make your home smart.

Compatible with the EnOcean® worldwide Smart Home / Smart Building protocol, this EnOcean® Relay Switch is mounted in your ceiling, in your wall or behind your electrical socket, and will turn any dumb device into a smart device. With its 2300W switching capacity and potential-free input, make your home smarter, without changing any single appliance.

High switching capacity

With a capacity of 2300W, you can switch ON/OFF almost everything

Ultra low profile

A concentrate of technology and features, in less than 17mm thickness

Potential-free input

Whatever you put IN, the EnOcean® Relay Switch will drive it out. Possibilities are limitless, from light control, to boiler to garage door

Remote commissioning

Using latest EnOcean® specifications, the NodOn® Relay Switch can be fully commissioned without any physical intervention from the installer

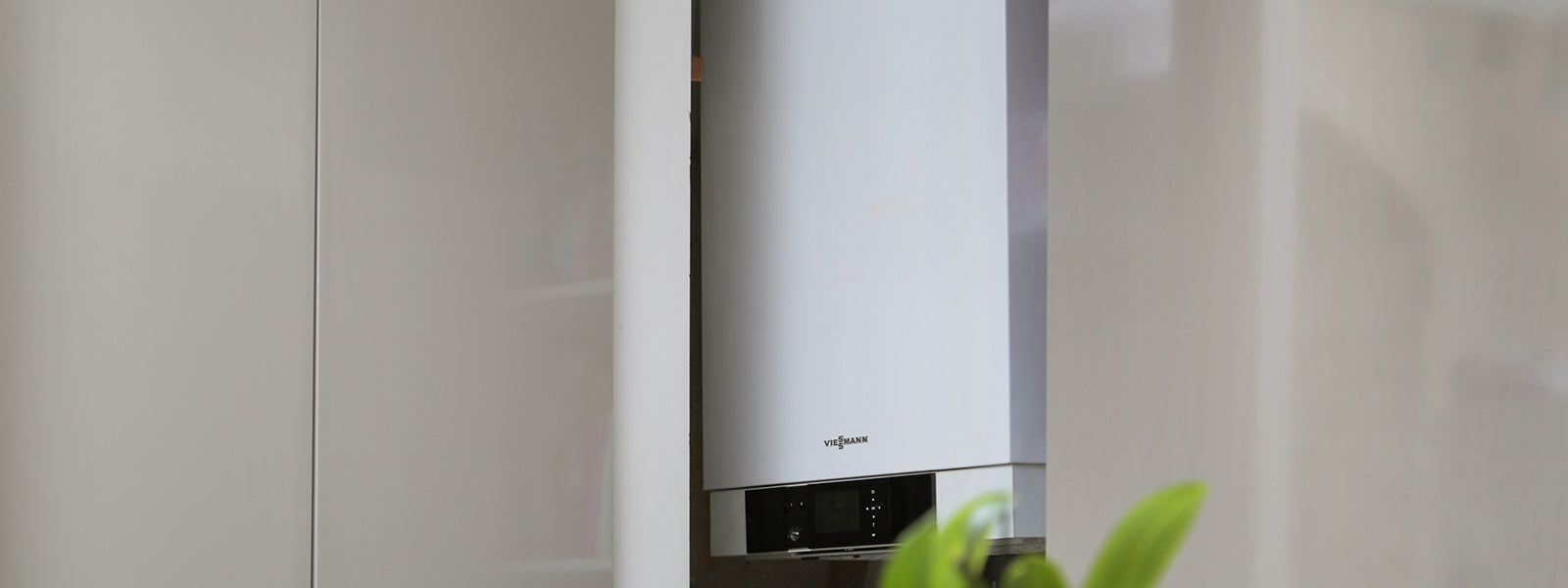

Boiler

With my Multifunction Relay Switch, I can

Ultra compact

Technical specifications

Power supply: 230V AC ~ 50Hz
Switching capabilities: 230V AC – 10A // 30V DC – 10A
Consumption: <1W
Maximum output power: 2.3kW (Resistive load)
Radio frequency range: 868,0 to 868,6 Mhz
RF power max: +3dBm
Range: Up to 30m inside
Operational temperature: 0°C to 40°
Protection rating: IP 2X
Pairing: up to 22 controllers
EEP (EnOcean Profile): D2-01-0F
Dimensions : 40 mm (l) x 44 mm (L) x 16.9 mm (h)

Certifications and standards

Europe
EN60669-1:1999+A1:02+A2:08
EN60669-2-1:2004+A1:09+A12:10
EN300220-2 V3.1.1
EN301489-01 V2.1.1
EN301489-03 V2.1.1
EN62479:2010

SIN-2-1-01 – Multifunction Relay Switch
868MHz
