The EnOcean® Metering Smart Plug

The EnOcean® Metering Smart Plug can control your appliances, and monitor their energy consumption!

Compatible with the EnOcean® worldwide Smart Home / Smart Building protocol, the NodOn® Metering Smart Plug can switch ON or OFF any device plugged in.

With its high power capacity, use it to control your lights, electrical heaters or any other household appliance. Combined with your home automation gateway, the Metering Smart Plug measures your energy consumption, and helps you reducing your electricity bills!

Smart Actuator

EnOcean® compatible, the NodOn® Metering Smart Plug can work as a standalone product (controlled by any battery-less EnOcean® transmitters such as a Wall Switch, a Soft Remote, …) or in a complete gateway centric ecosystem (compatibility list below)

High power capacity

NodOn® Smart Plug is able to switch up to 16A, which makes it suitable for all your domestic appliances

Ergonomy

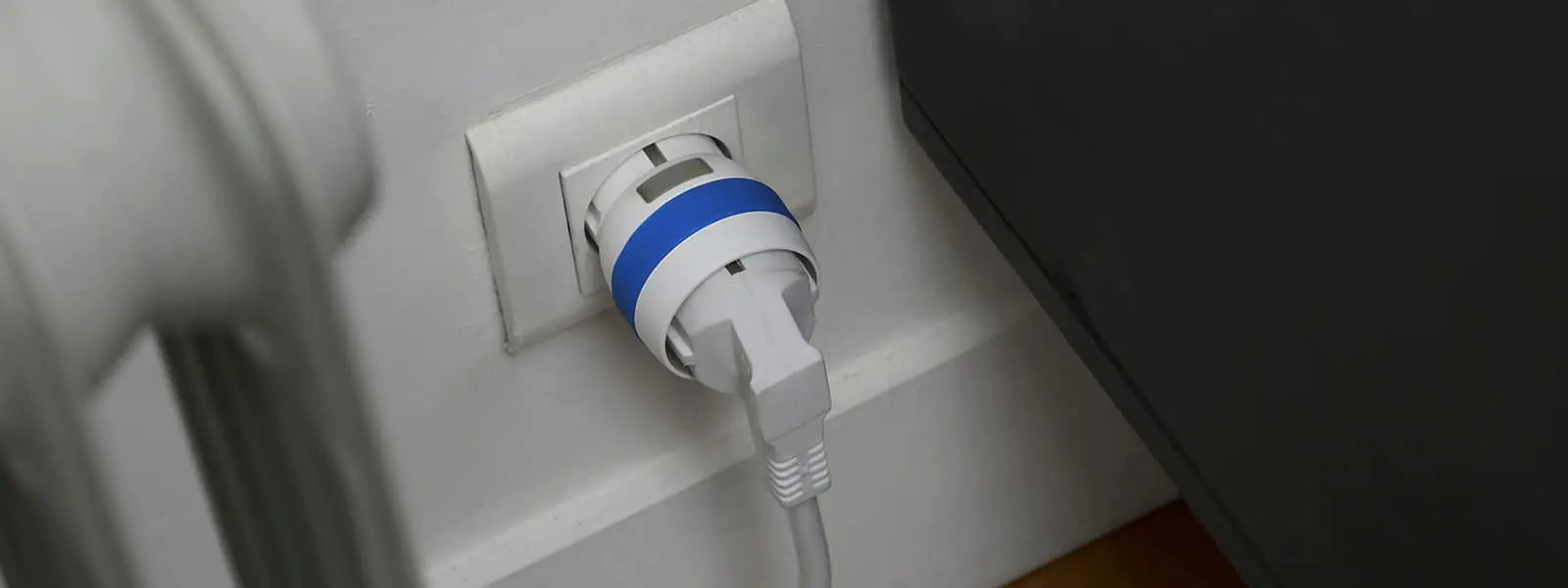

NodOn® Smart Plug can be plugged in head up or head down, in order to facilitate its installation

Metering

Instant power and cumulated energy Metering, to monitor your consumption, and help you reducing your electricity bills

Ergonomic

With My NodOn Metering Smart Plug, I can :

Metering

Technical specifications

Power: 230V AC 50Hz (EU) / 110V AC 60Hz (US)
Max switching capacity: 3.000W (Continuous) 3.680W (Temporary) on resistive load
Self consumption < 1W
Radio: EnOcean® Protocol (EEP D2-01-0B) – Frequency depending on region
Range: 30M Indoor
Power outage detection and notification
Metering of Instant power (W) and cumulated Energy (Wh)
Dimension: 104*51*36mm

Certifications and standards

Europe
EN61058 2002+AE2008: 2008
NF C 61-314 2008+AE2010: 2010 (Type E)
DIN 0620 -2-1: 2013 (Schuko)
EN301489-1 V1.6.1: 2013
EN301489-2 V1.6.1: 2013
EN300220-1 EN300220-2 V2.4.1: 2012 V1.9.2: 2011

USA
PART 15 of the FCC rules
IC Rules
UL std 498A, 60730-1
CSA STD IEC E730-1 and C22.2 N ̊42

ASP-2-1-01
EnOcean® Metering Smart PlugType E (French)
868MHz

ASP-2-1-11
EnOcean® Metering Smart Plug Schuko (German)
868MHz

ASP-2US-1-00
EnOcean® Metering Smart Plug US
902MHz
Available soon
