Project Description

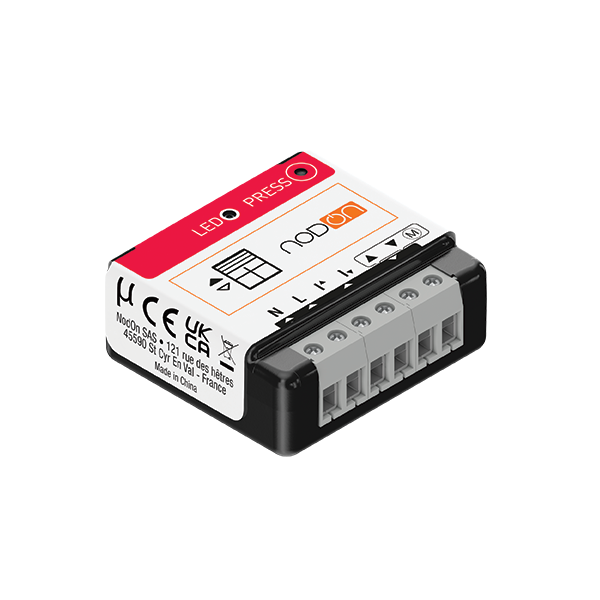

Zigbee Roller Shutter Relay Switch

Automatically or remotely control your roller shutters, awnings, or sunshade blinds

This Zigbee Roller Shutter Relay Switch can be installed on your equipment (roller shutter, awning, sunshade blind) to connect it and turn it remotely or automatically controllable thanks to a Zigbee 3.0 compatible controller or gateway. Interoperable with the main Zigbee ecosystems on the market, this NodOn relay switch is ideal to centralize the roller shutters control of a room, a floor, or a full building. With a compact size, you can install it in a flush mounting pot >30mm or directly at the electrical panel with NodOn DIN Rail Box. The centralization of your openings and the creation of scenario become possible thanks to this relay switch, directly installed on your equipment, and adapted to it thanks to its auto calibration feature.

Zigbee 3.0 certified

This Roller Shutter Relay Switch is Zigbee 3.0 certified allowing you a full interoperability with the products that integrate the relay switch profile. You can create your Zigbee ecosystem and make it evolve.

Auto calibration

No setting needed: the Zigbee Roller Shutter Relay Switch calibrates itself on your motorized equipment (awning, roller shutter, sunshade blind).

Quick installation

Install only in a few minutes your Zigbee relay switch, whether it is in a flush mounting pot >30mm or at the electrical panel with NodOn DIN Rail Box.

Automatic or remote control

Use a Zigbee compatible controller or your smartphone (via your home automation gateway app) to control your openings.

Update Over The Air

Thanks to the OTA Zigbee feature, your relay switch will always benefit the latest updates. The updates can be carried out via a compatible gateway.

Roller shutter centralisation

With my Zigbee Roller Shutter Relay Switch, I can:

Serenity

Simulate my presence by triggering the opening and closing of the shutters at home at a fixed hour in case of absence

Centralisation

Open the different roller shutters of the living room with a single controller or via my smartphone

Automation

Simultaneously lower the awnings of several floors of a building.

Comfort

Automatically open the roller shutter of the bedroom at 20% for a sweet wake up.
Automate the opening and closing

Technical specifications

Power supply: 230V AC ~ 50Hz
Switching capabilities: 230V AC – 3A
Maximum engine power:
280W Max – 60 Nm Max- Integrated zero crossing
Consumption: <1W
Radio frequency range: 2.4 GHz
RF power max: +10dBm
Range: up to 30m indoors
Operational temperature: -20°C to 60°C
Protection rating: IP 20
Rolling sunshades compatible
Device ID Type: Window Covering Device (0x0202)
Dimensions: 40 mm (l) x 44 mm (L) x 16.9 mm (h)

SIN-4-RS-20 – Zigbee Roller Shutter Relay Switch
