Project Description

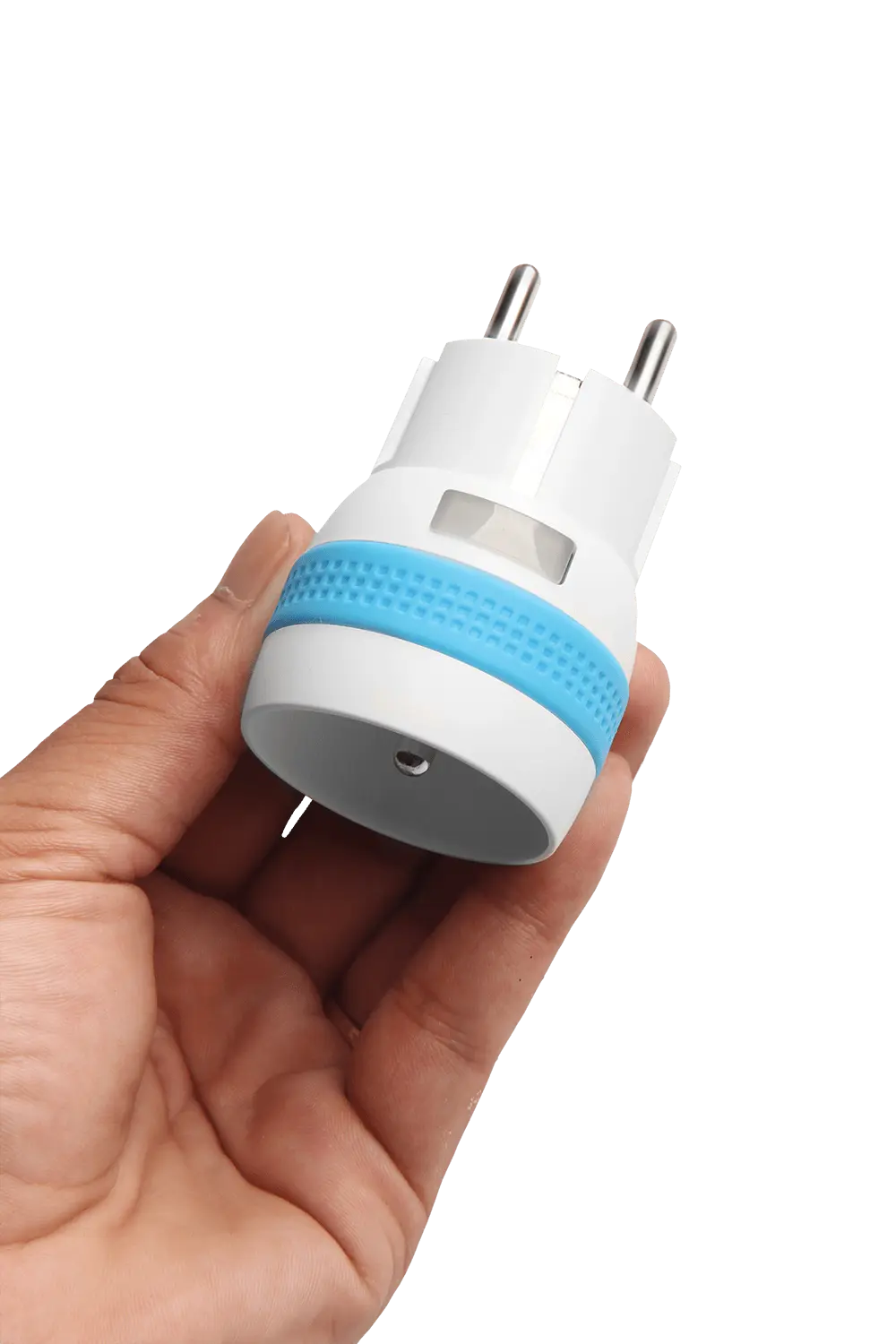

The EnOcean Smart Plug

Meet the most advanced and cost effective EnOcean Smart Plug of the market!

Compatible with the EnOcean worldwide Smart Home / Smart Building protocol, the NodOn Smart Plug can switch ON or OFF any device plugged in.

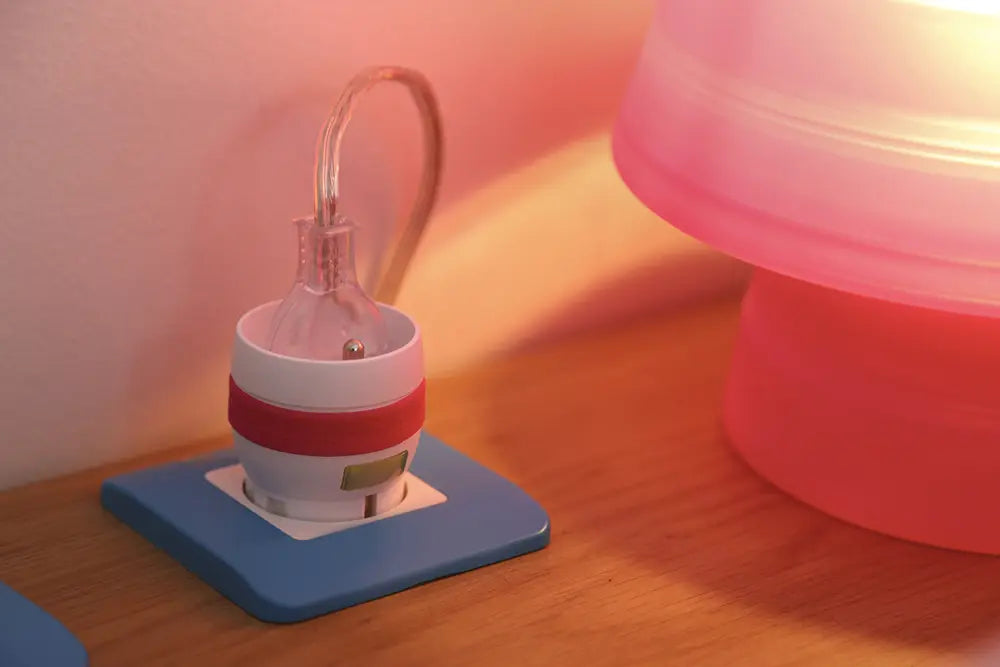

With its high power capacity, use it to control your lights, electrical heaters or any other household appliance. Installed in less than a minute, the EnOcean Smart Plug by NodOn is the perfect product to start building your Smart Home.

Smart Actuator

EnOcean compatible, the NodOn Smart Plug can work as a standalone product (controlled by any battery-less EnOcean transmitters such as a Wall Switch, a Soft Remote, …) or in a complete gateway centric ecosystem (compatibility list below)

Power Cut Detection

In order to secure the use of your appliances, NodOn Smart Plug notifies you, through your gateway, in case of power cut

High power capacity

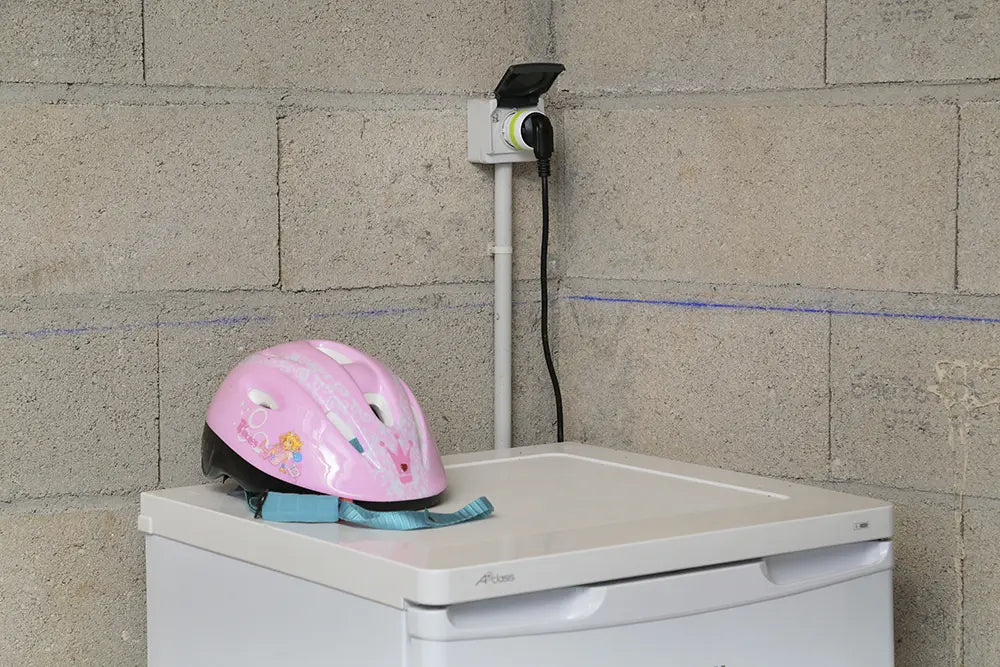

NodOn Smart Plug is able to switch up to 16A, which makes it suitable for all your domestic appliances

Ergonomy

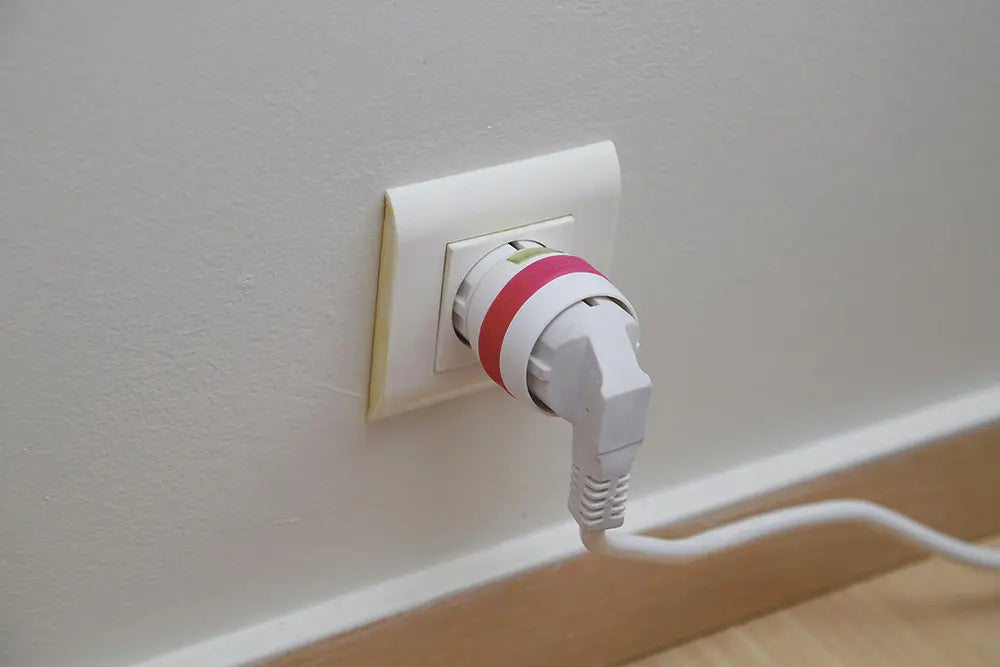

NodOn Smart Plug can be plugged in head up or head down, in order to facilitate its installation

Ergonomic

With My NodOn Smart Plug, I can :

High power capacity

Technical specifications

Power: 230V AC 50Hz (EU) / 110V AC 60Hz (US)
Max switching capacity: 3.000W (Continuous) 3.680W (Temporary) on resistive load
Self consumption < 1W
Radio: EnOcean Protocol (EEP D2-01-0A) – Frequency depending on region
Range: 30M Indoor
Power outage detection and notification (compatible gateway needed)
Dimension: 104*51*36mm

Certifications and standards

Europe
EN61058-1 :2002+A2 :2008
NF C 61-314 :2008+A1 :2010 (Type E)
DIN VDE 0620 -1: 2013 (Schuko)
DIN VDE 0620 -2-1: 2013 (Schuko)
EN301489-1 V1.9.2
EN301489-3 V1.6.1
EN300220-2 V2.4.1

ASP-2-1-00

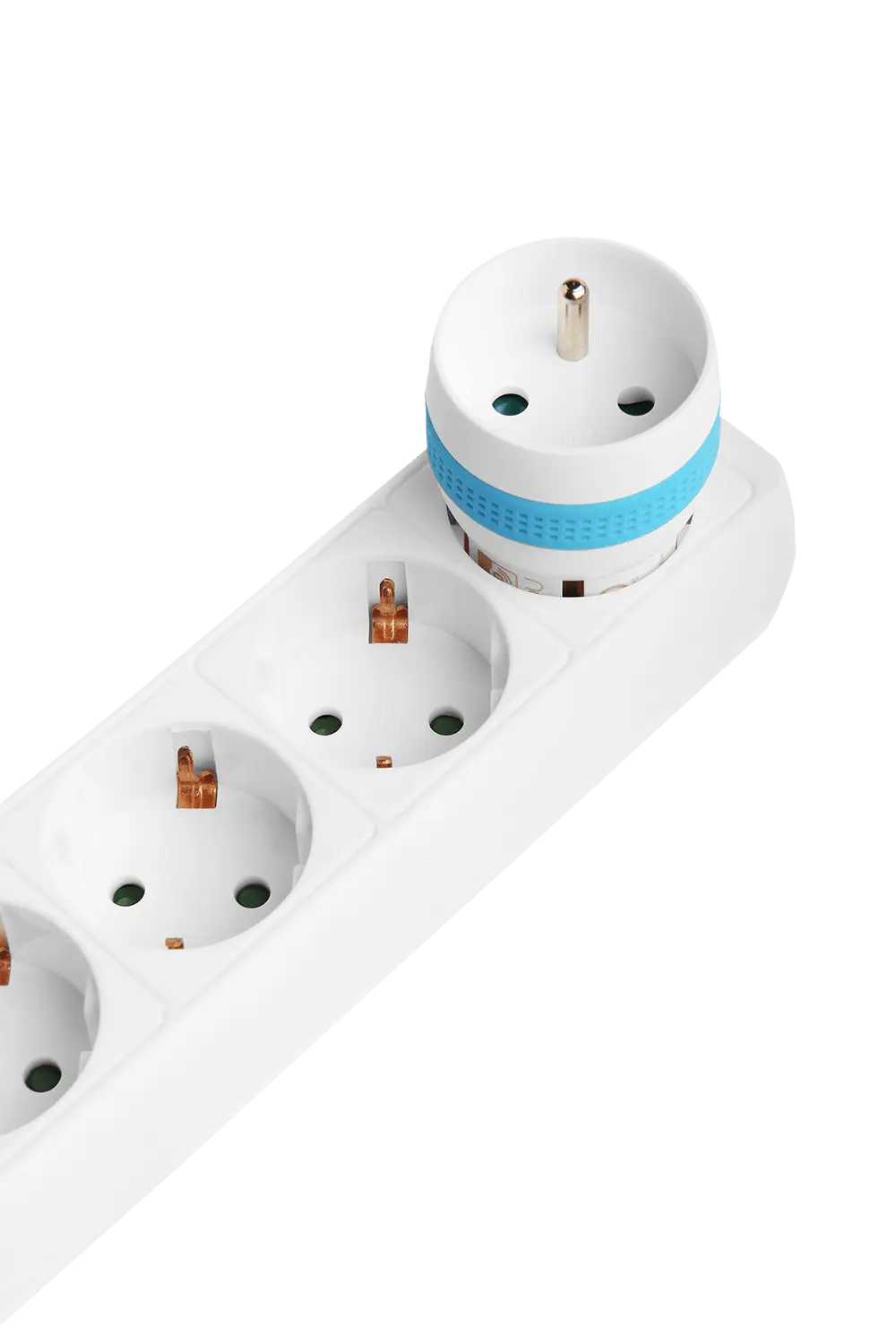

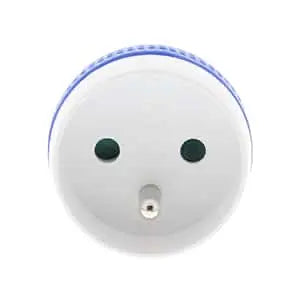

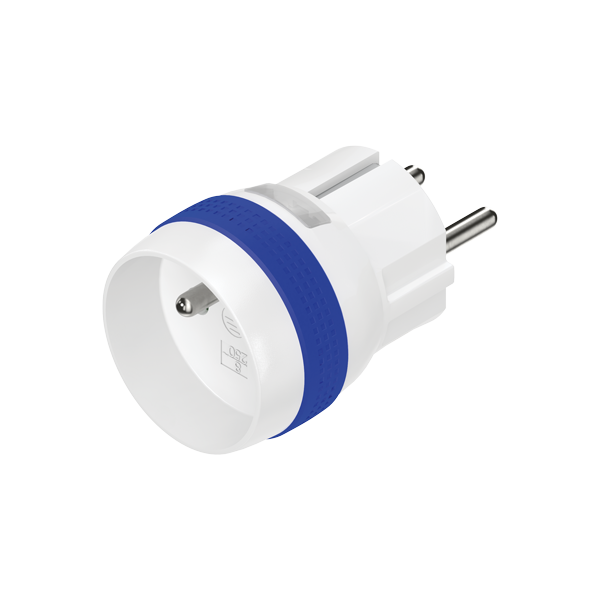

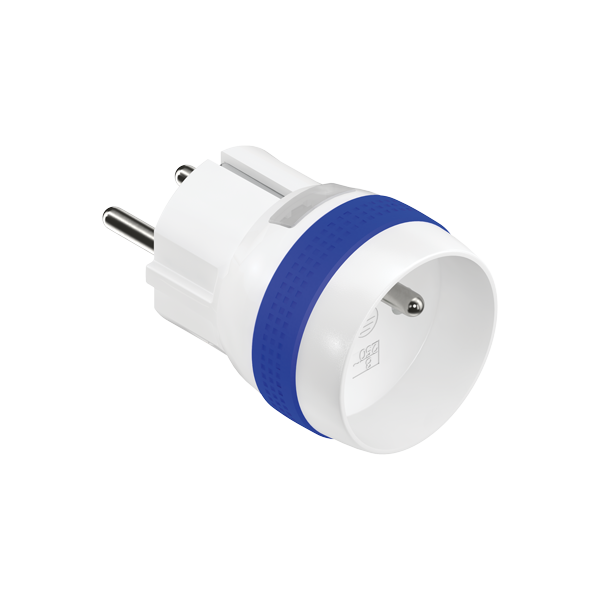

EnOcean Smart PlugType E (French)
868MHz

ASP-2-1-10

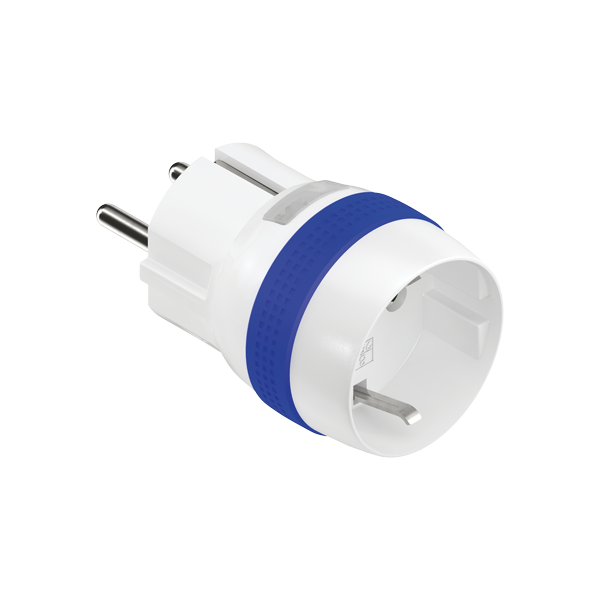

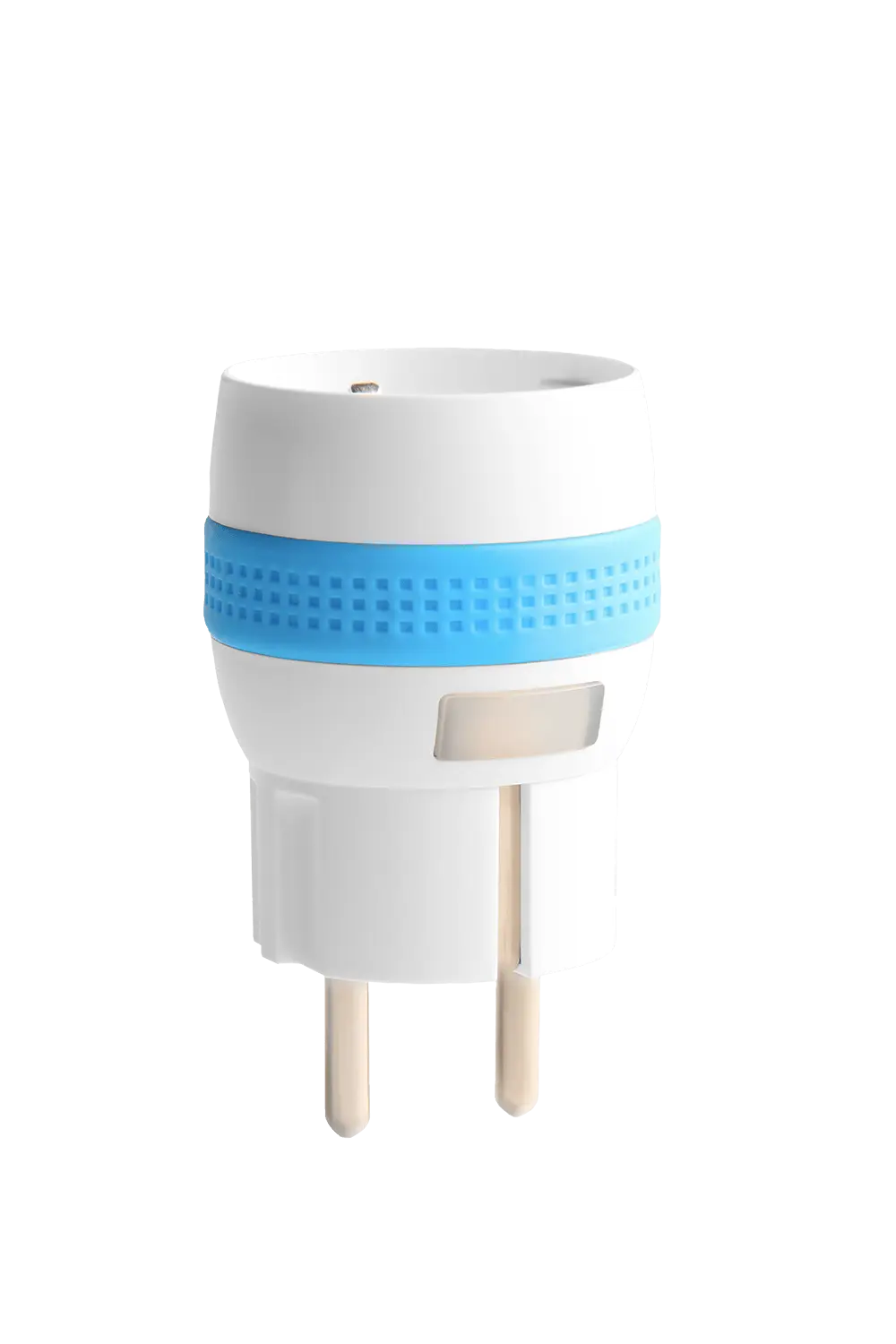

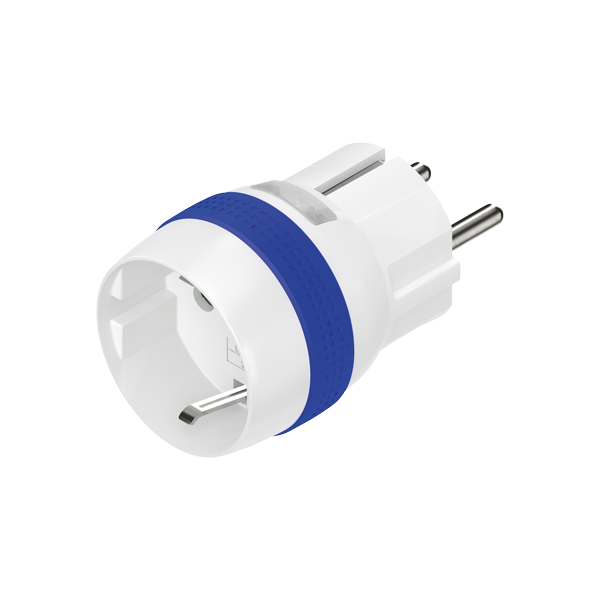

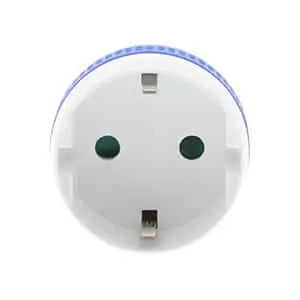

EnOcean Smart Plug Schuko (German)
868MHz

Compatible Gateways

Gateway with a dongle
