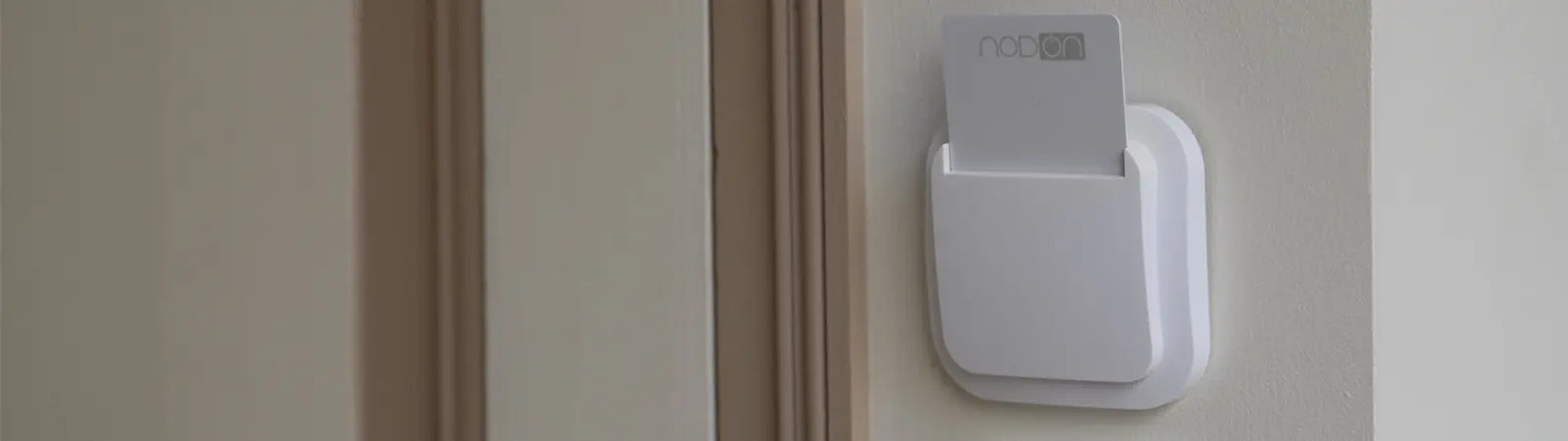

The EnOcean Card Switch

More than a simple Card Switch, this one is wireless…and battery-less!

Compatible with the EnOcean worldwide Smart Home / Smart Building protocol, this EnOcean Card Switch will revolutionize hotel rooms retrofit.

As incredible as it is, it doesn’t need any battery to operate, and it can be used to control EnOcean actuators for lights, heating system, AC, etc…

Make hotel rooms retrofit a child’s game with this EnOcean Card switch: no construction work needed, no maintenance. Retrofit any room without stopping your operations.

No battery

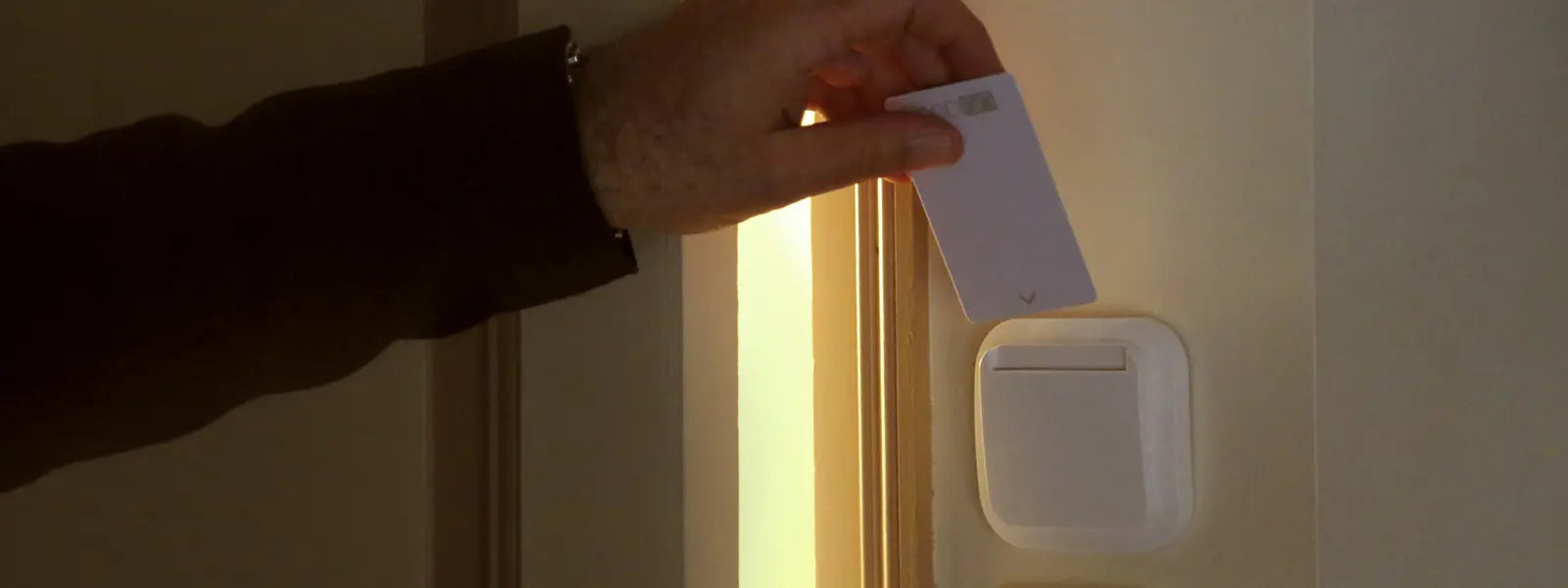

Harvesting directly its energy from the insertion of the card, the EnOcean Card Switch doesn’t need any battery (and any wire) to operate

Wireless

Advantages of a wireless system (flexibility) without the disadvantages (no battery = no maintenance)

Easy to mount

This Card Switch can be put up and take off easily thanks to screws or sticky bands

Discreet

Its white and refined design will confer a discreet and cozy integration in any room

Discreet

With the EnOcean Card Switch, I can

Room Management

Technical specifications

Power source: Magneto-resistive (no battery)
2 symmetrical actions based on the insertion and the removing of the card
Wall mounting using adhesive bounding (included) or screws (not included)
Operational temperature: 0°C to 40°C
Radio: EnOcean – Frequency depending on region – EEP – F6-04-01
Range: 30m indoor
Dimensions: 80*80*20mm

Certifications and standards

Europe
EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
EN 301489-3 V1.6.1
EN 61000-3-2:2013,
EN 61000-3-3:2013
EN 300220-2:V3.1.1
EN 62479:2010

USA
FCC & IC Rules

CCS-2-1-01 – Cozy White
868MHz

CCS-2US-1-01 – Cozy White
902MHz

Compatible Gateways

Gateway with a dongle
